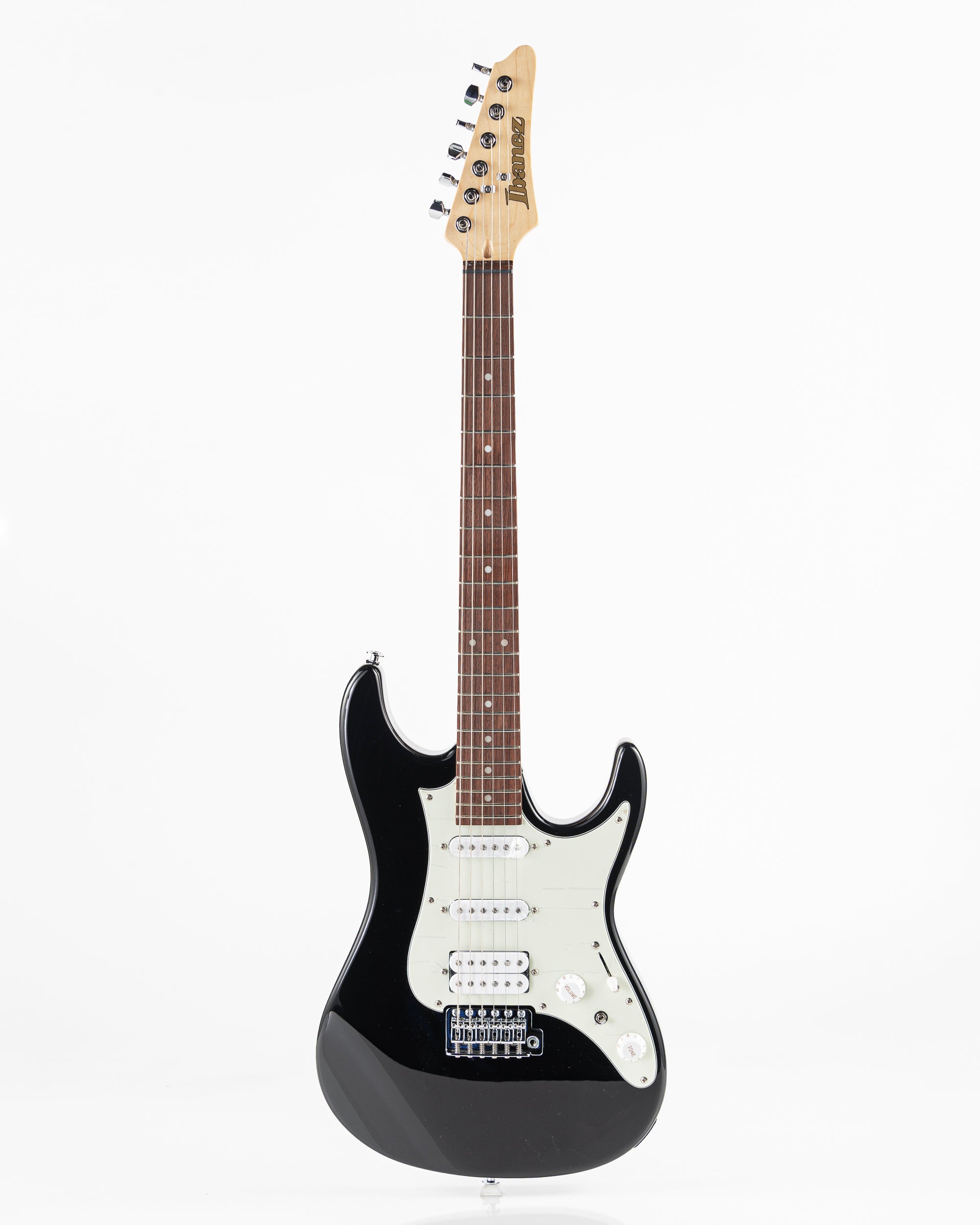

Ibanez AZES40 Electric Guitar - Black

The photos listed are of the actual instrument for sale. All instruments are shot by our in-house photography team.

This Guitar:

Weight: 6 lbs 12.6 oz

Serial Number: I250804527

Welcoming yet another expansion to the highly successful AZ series, Ibanez is proud to introduce the AZES or AZ Essentials line. The philosophy behind this series is to bring the tone, versatility and, playability of this celebrated lineup to a wider array of beginner and intermediate players. However, AZ Essentials are also equipped with series-specific features such as a Mono-unit output jack, a 250mm fingerboard radius, and Comfort round bridge saddles, all designed to make the beginner’s learning process a streamlined, enjoyable and fun experience.

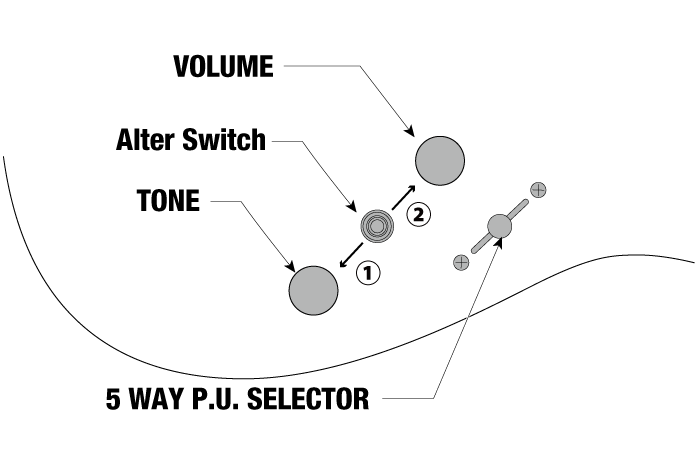

Alter Switch:

When the alter switch is in neck position, two hum tap mode is on. When the alter switch is in bridge position, two hum tap mode is off. Two hum tap mode means the neck and middle pickups are wired in series and functioning as a humbucker. When two hum tap mode is off and the pickup selector switch is in neck position, neck pickup is selected. When the switch is in between neck and center position, neck and center pickups are selected. When the switch is in center position, center position is selected. When the switch is in between center and bridge position, center pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When two hum tap mode is on and the pickup selector switch is in neck position, the neck and center pickups are selected and they are in series. When the switch is in between neck and center position the neck pickup and bridge side of the bridge pickup are selected. When the switch is in center position, neck, center, and bridge pickups are selected; the neck and center pickups are in series mode. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.

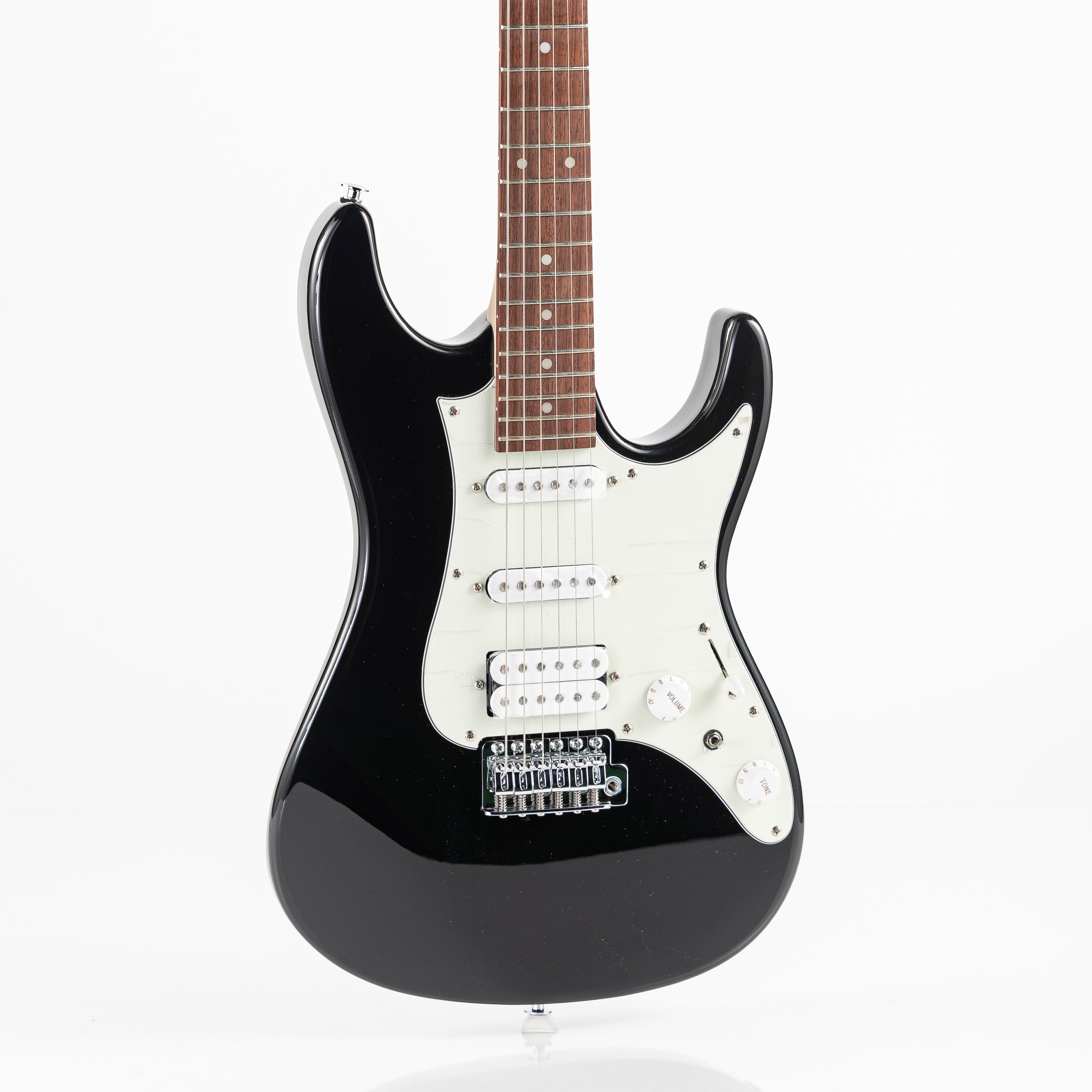

Body -

• Body Material: Poplar Body
• Finish Color: Black

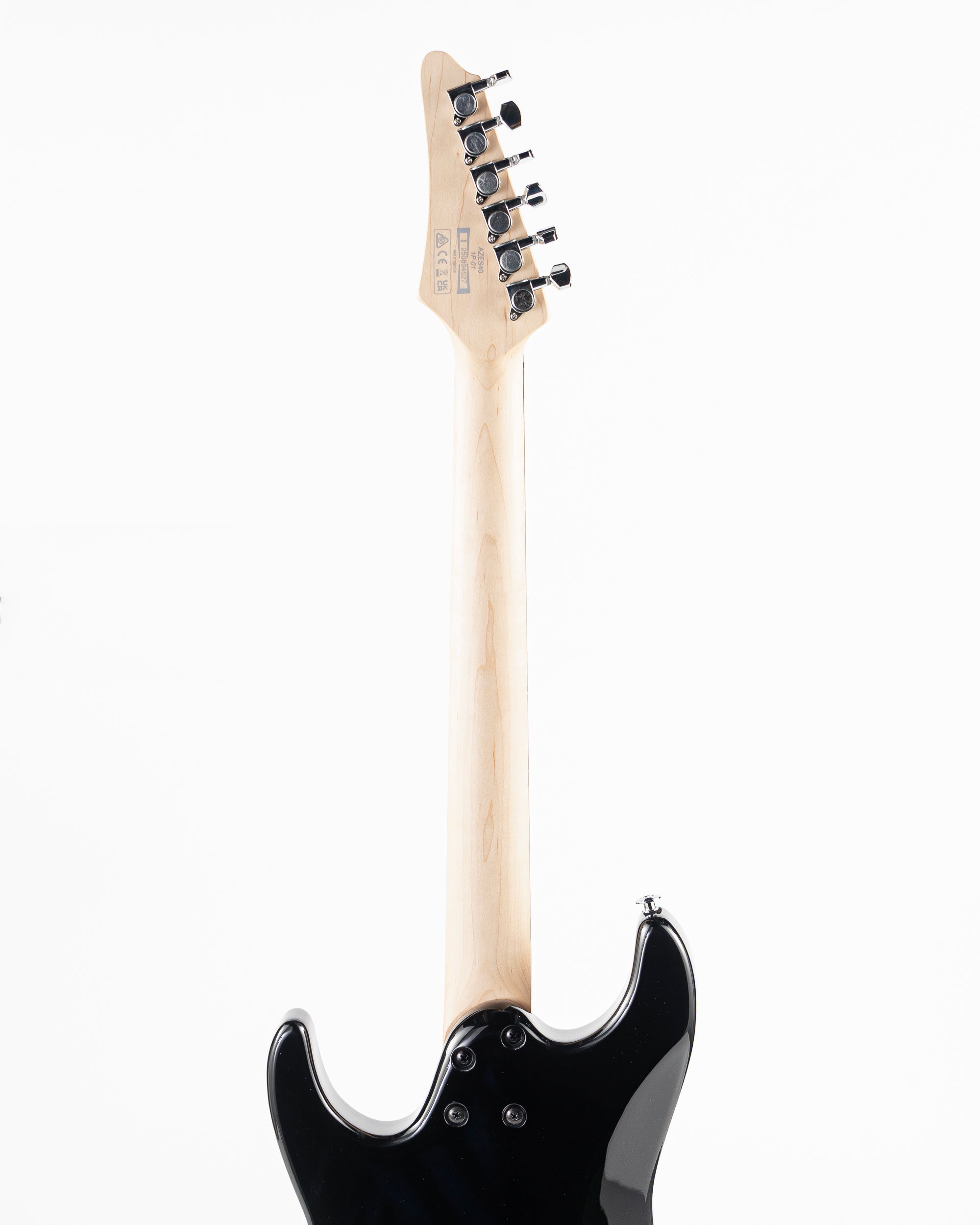

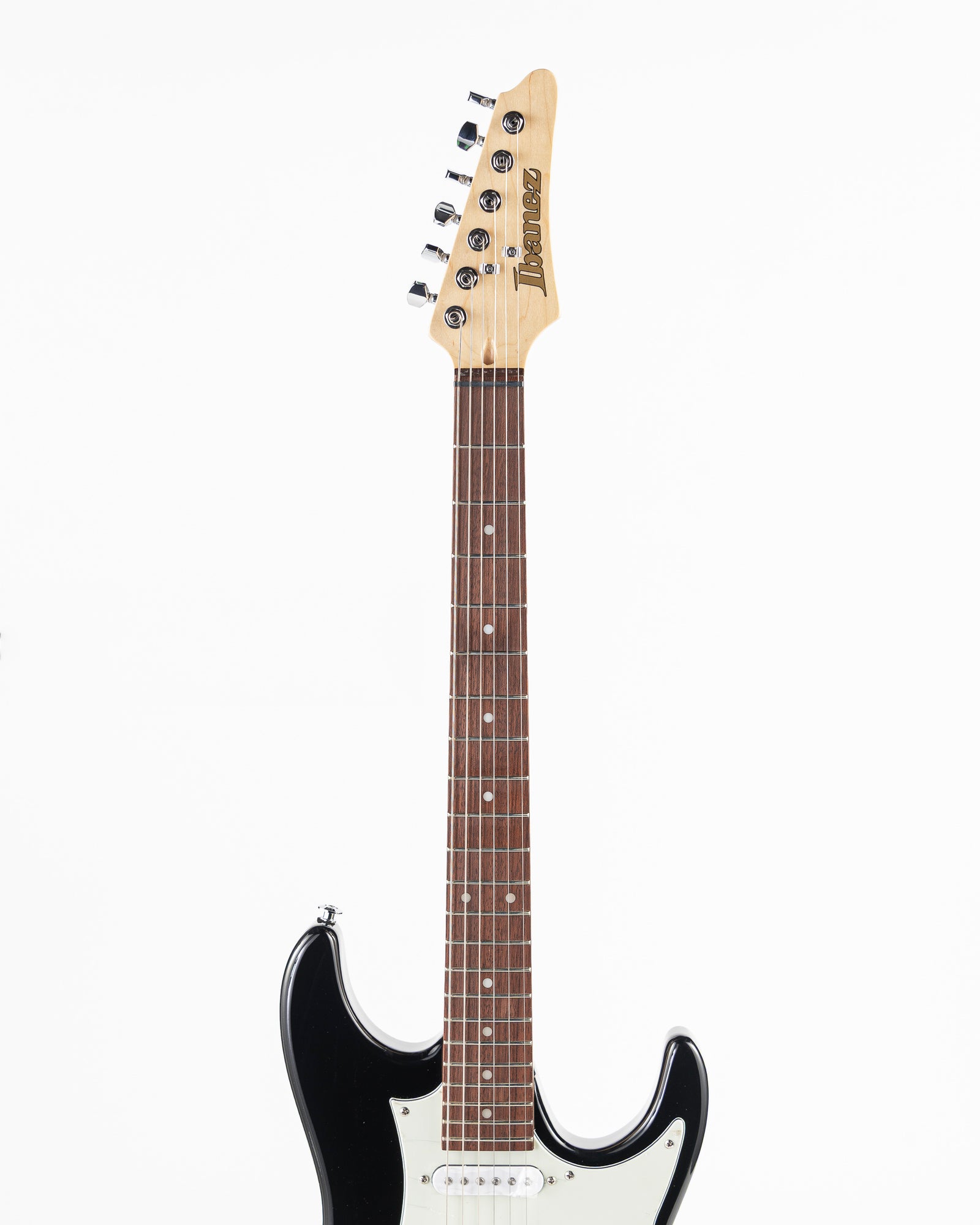

Neck -

• Neck Material: Maple
• Fretboard Material: Jatoba
• Inlays: White Dot
• Scale Length: 25"
• Frets: Medium
• Number of Frets: 22
• Fretboard Radius: 250mm
• Width at Nut: 42mm
• Neck Construction: Bolt-On All Access Neck Joint

Hardware -

• Bridge: T106 Bridge w/ Comfort Round Steel Saddles

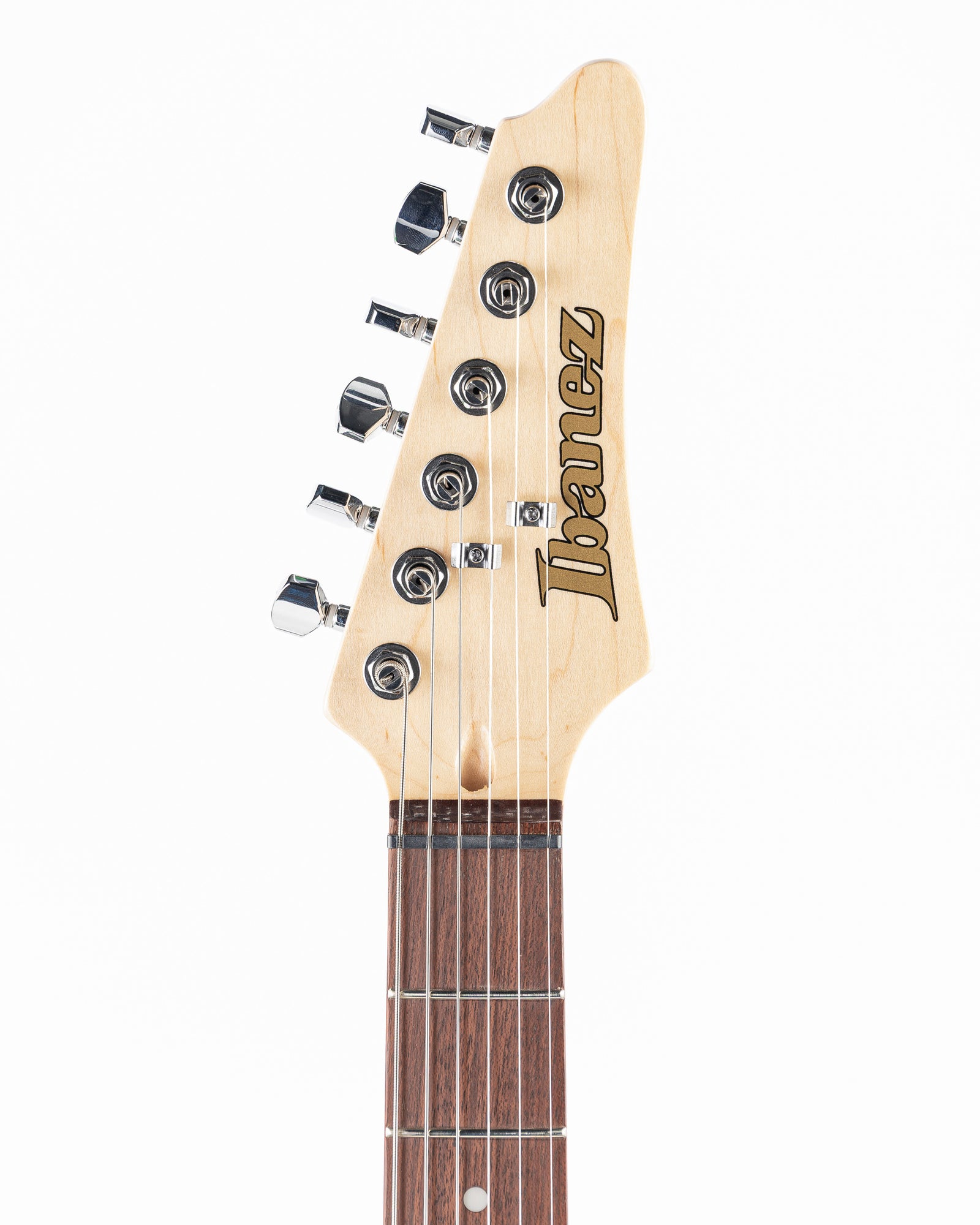

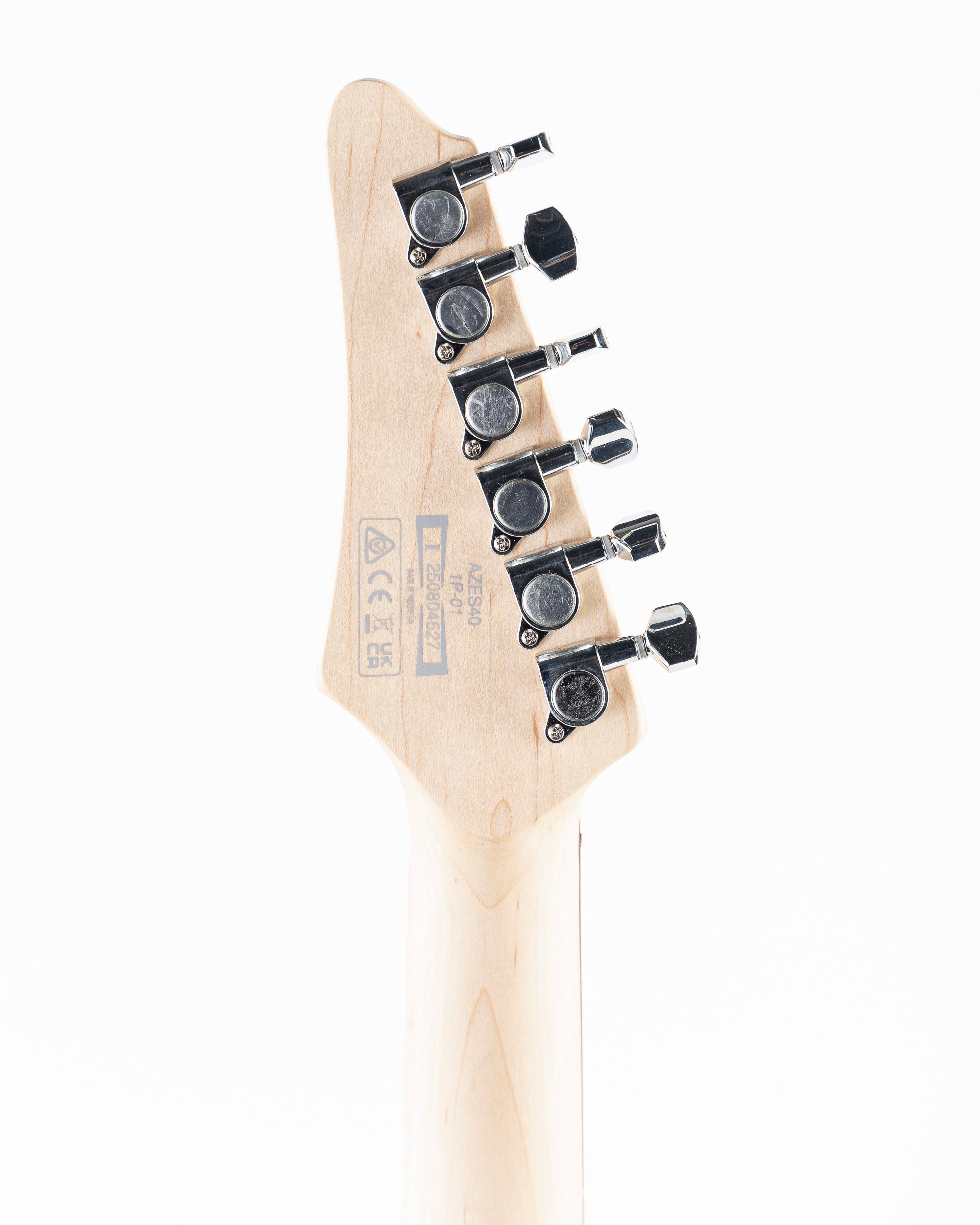

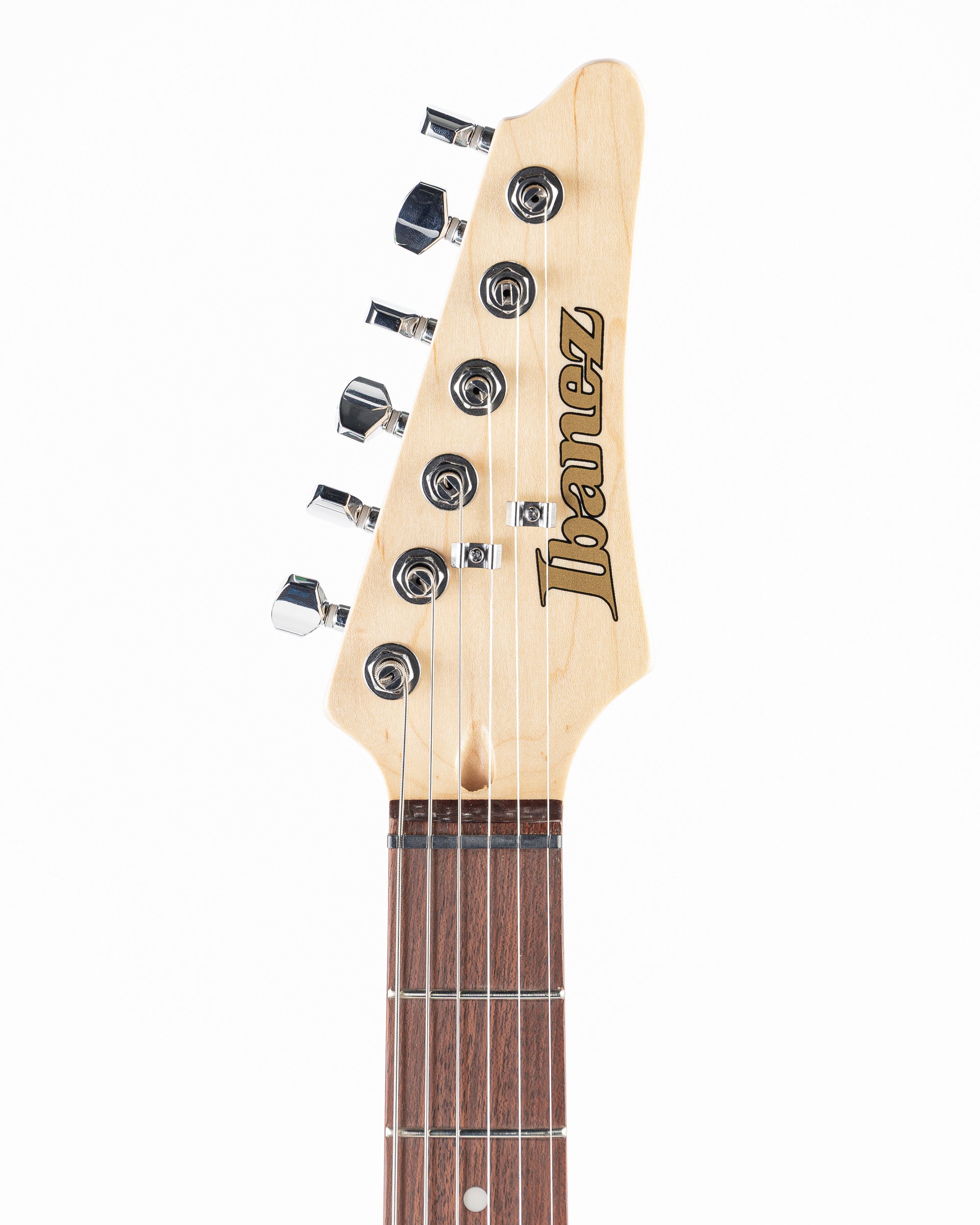

• Tuners: Split Shaft Ibanez Machineheads

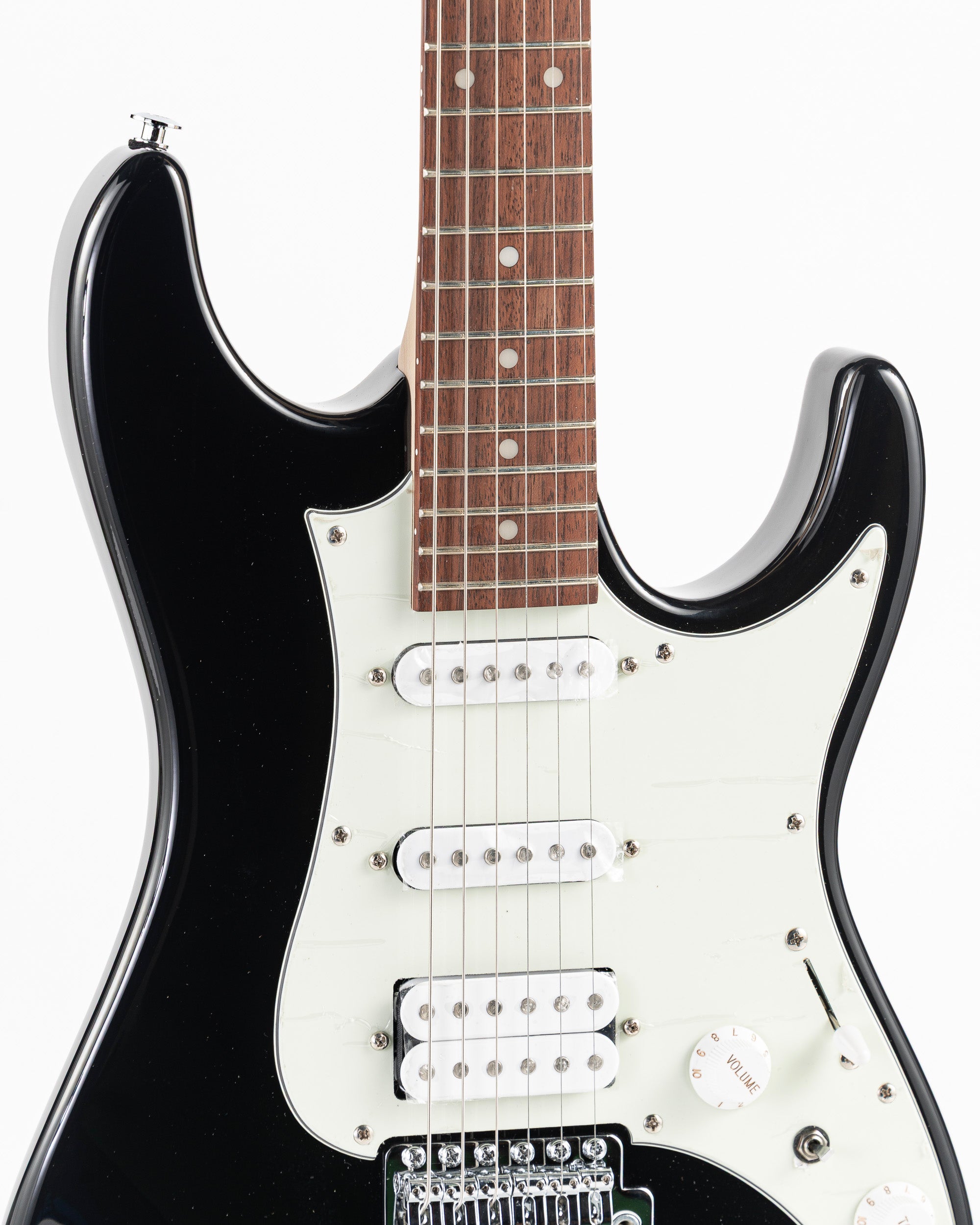

Electronics -

• Neck Pickup: Essentials (S) Neck Pickup (Passive/Ceramic)
• Middle Pickup: Essentials (S) Middle Pickup (Passive/Ceramic)
• Bridge Pickup: Accord (H) Bridge Pickup (Passive/Ceramic)
• Knob Configuration: Master Volume, Master Tone, dyna-MIX9 Switching System, Alter Switch
