Unlike anything before it, Silos merges together a digital, analog, and tape delay into one compact and powerful pedal. In addition to the tri-voice delay, it features tap tempo, user-assignable expression control, and the ability to save and recall six presets, making it endlessly customizable and easy to operate. It’s like having three classic pedals all rolled into one! Now you can save room on your pedalboard while never having to decide which single delay to use again.
Silos was meticulously designed to respond well to gain and overdrive saturation.
Silos has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.
Silos has two operating modes which are extremely easy to switch between on the fly! In Live mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset mode, stored presets (including expression pedal mapping) are selected using the Preset switch, and the physical settings of the controls will be ignored.
Use any TRS expression pedal to take control over the Time, Repeats or Mix.

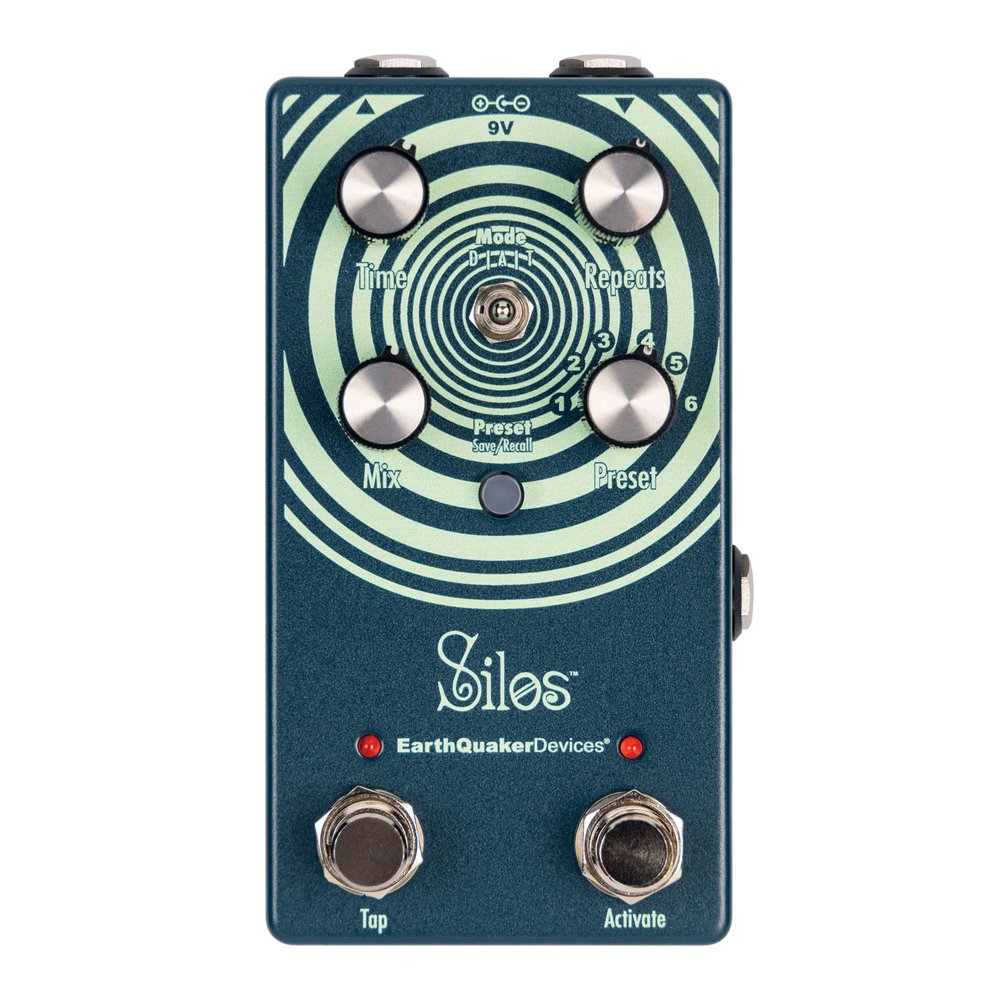

Controls
Mode Toggle: Toggles between Digital Delay, Analog Delay, and Tape Delay
Time: This sets the delay time from 0–1 second.
Repeats: This controls the regeneration of the delay signal. This mode does not self-oscillate in Digital Mode but begins to self-oscillate at 3 o’clock in Analog and Tape Modes.
Mix: Adjusts the level of the delay signal.
Preset: Six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the Mode switch and the expression jack assignment can be saved and recalled in any of the slots.
Dimensions
4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw
75 mA
Input Impedance
500 kΩ
Output Impedance
100 Ω
TRS expression pedal wiring
Tip: Wiper
Ring: +3.3V
Sleeve: Ground
Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
• For standard latching operation: tap the footswitch once to activate the effect and then tap again to bypass.
• For momentary operation: hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Silos is buffered bypass with tails. Power is required to pass signal.
Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
