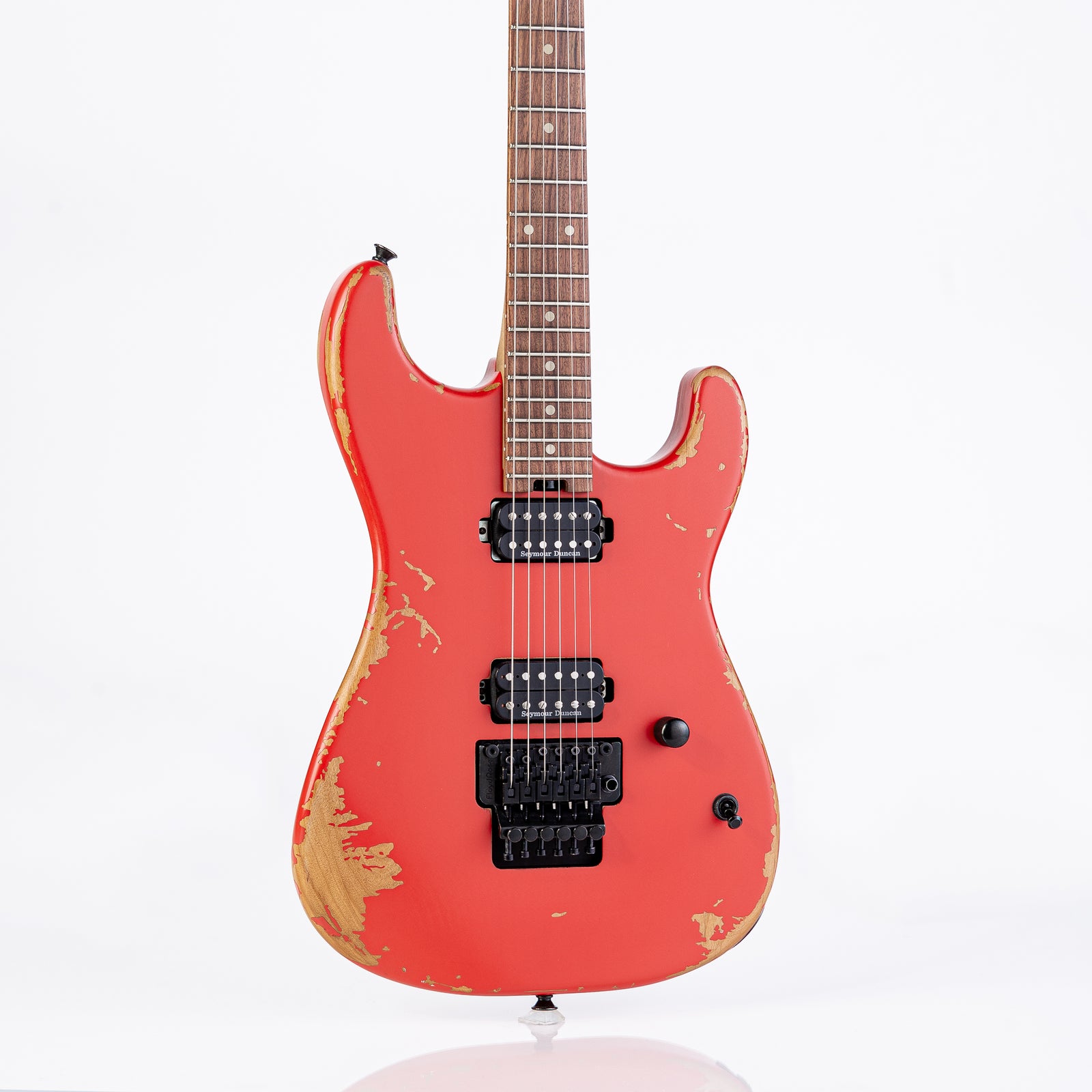

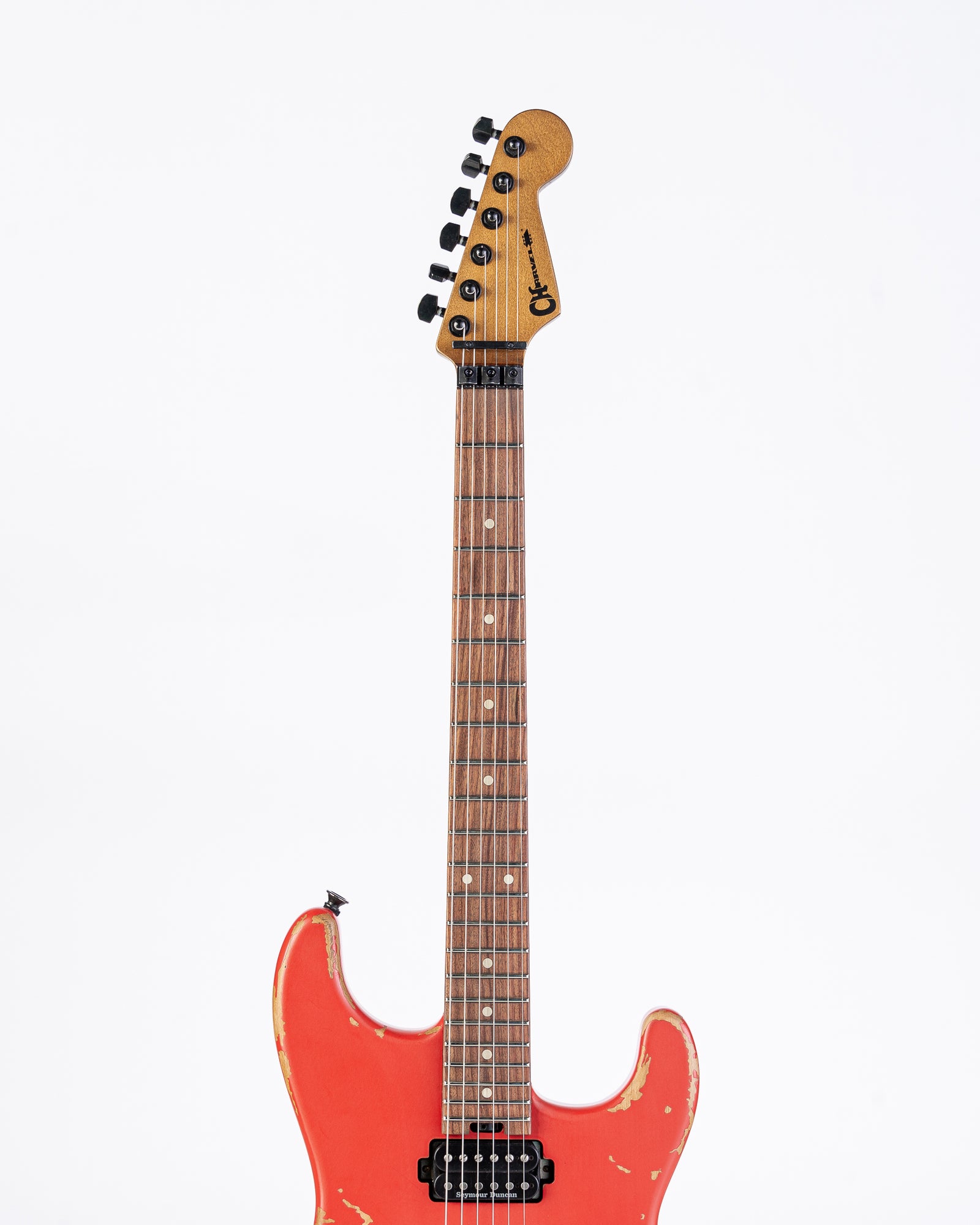

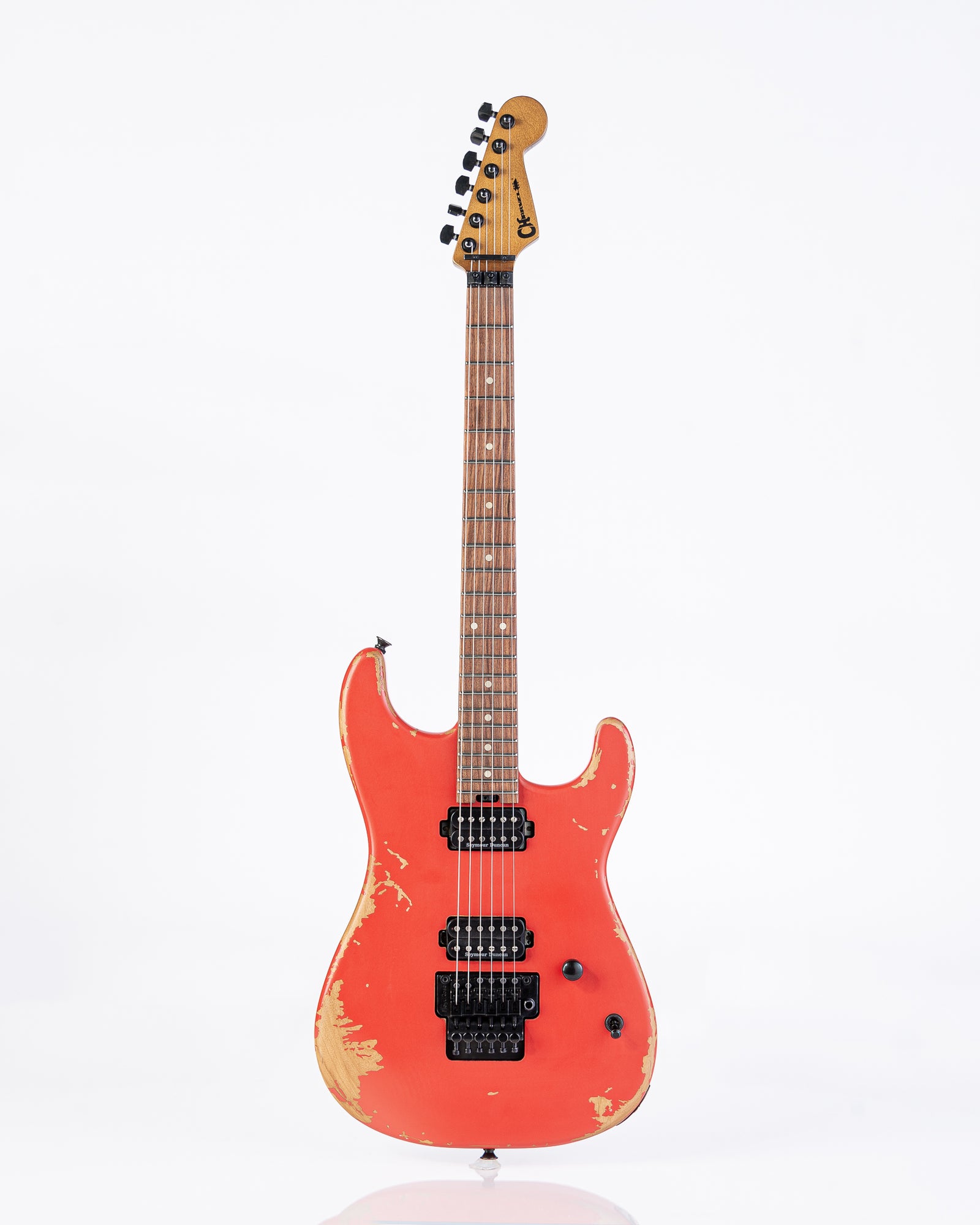

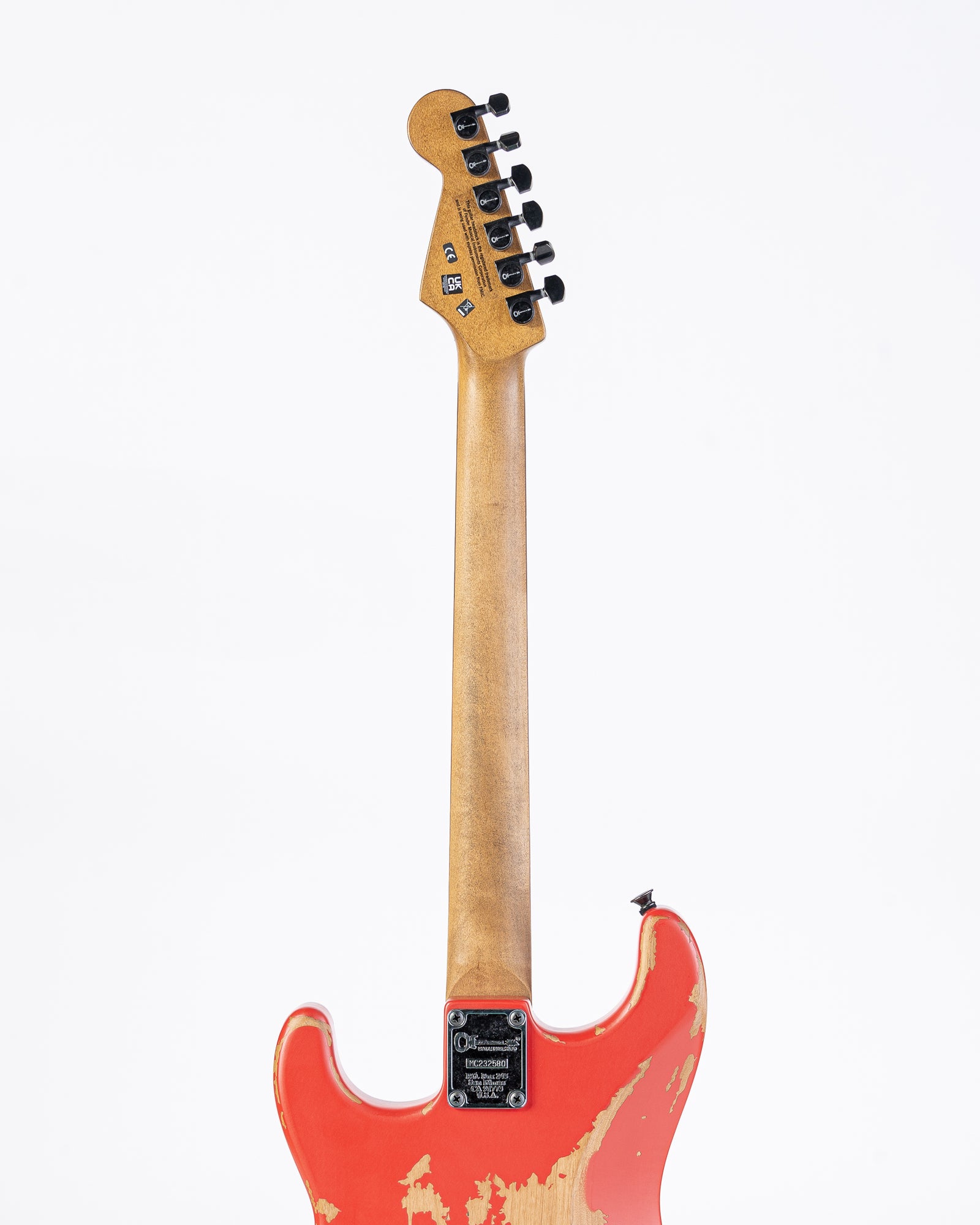

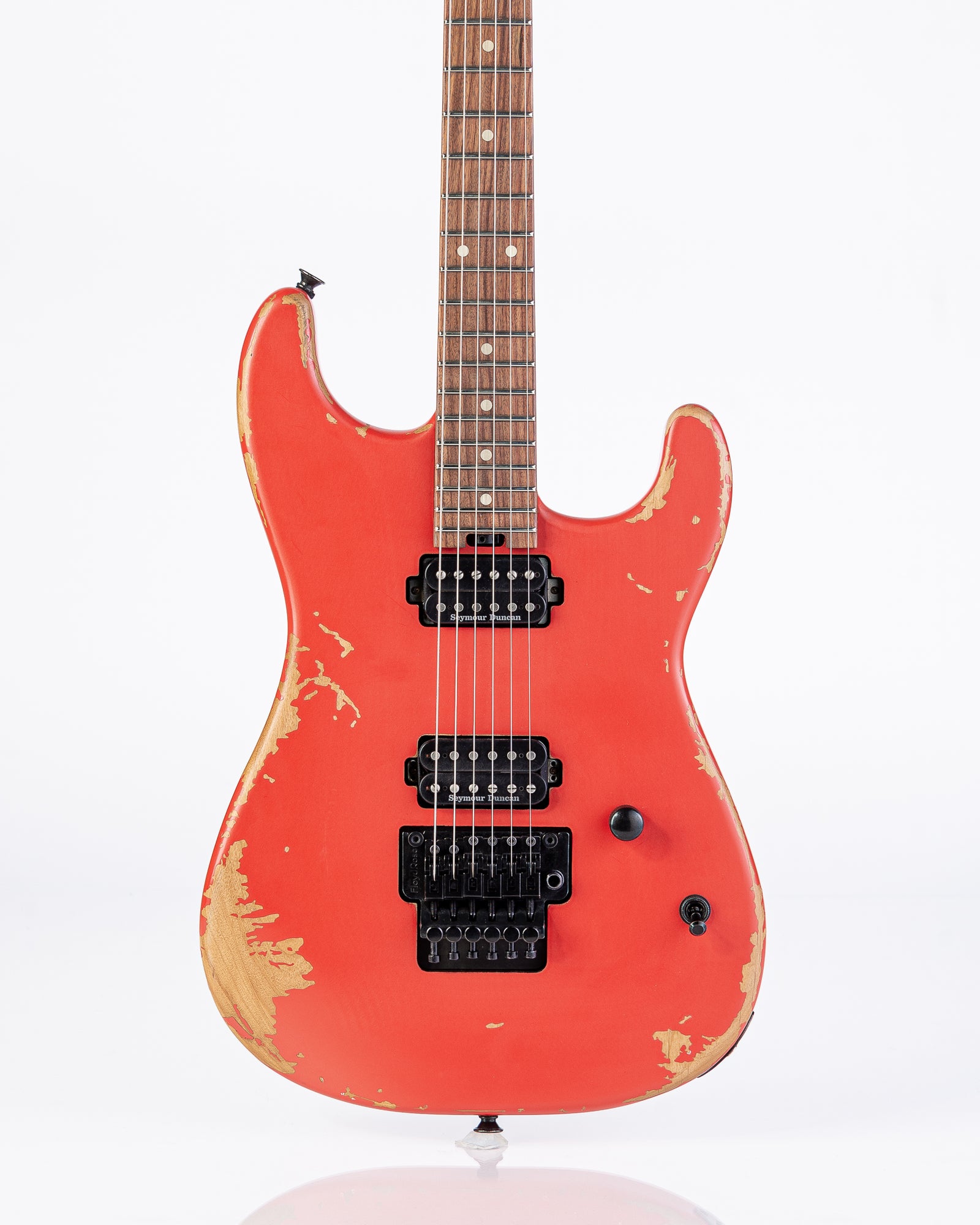

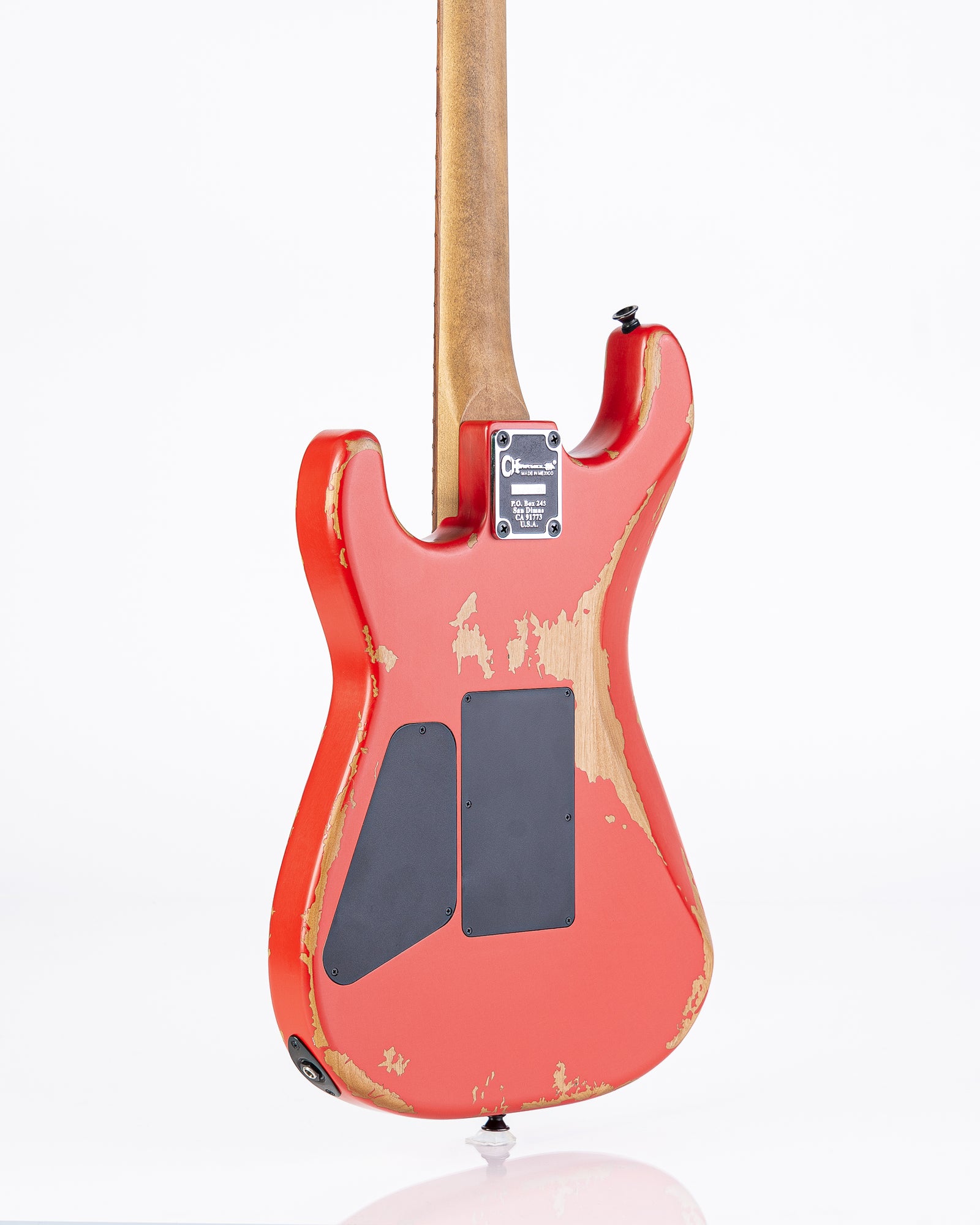

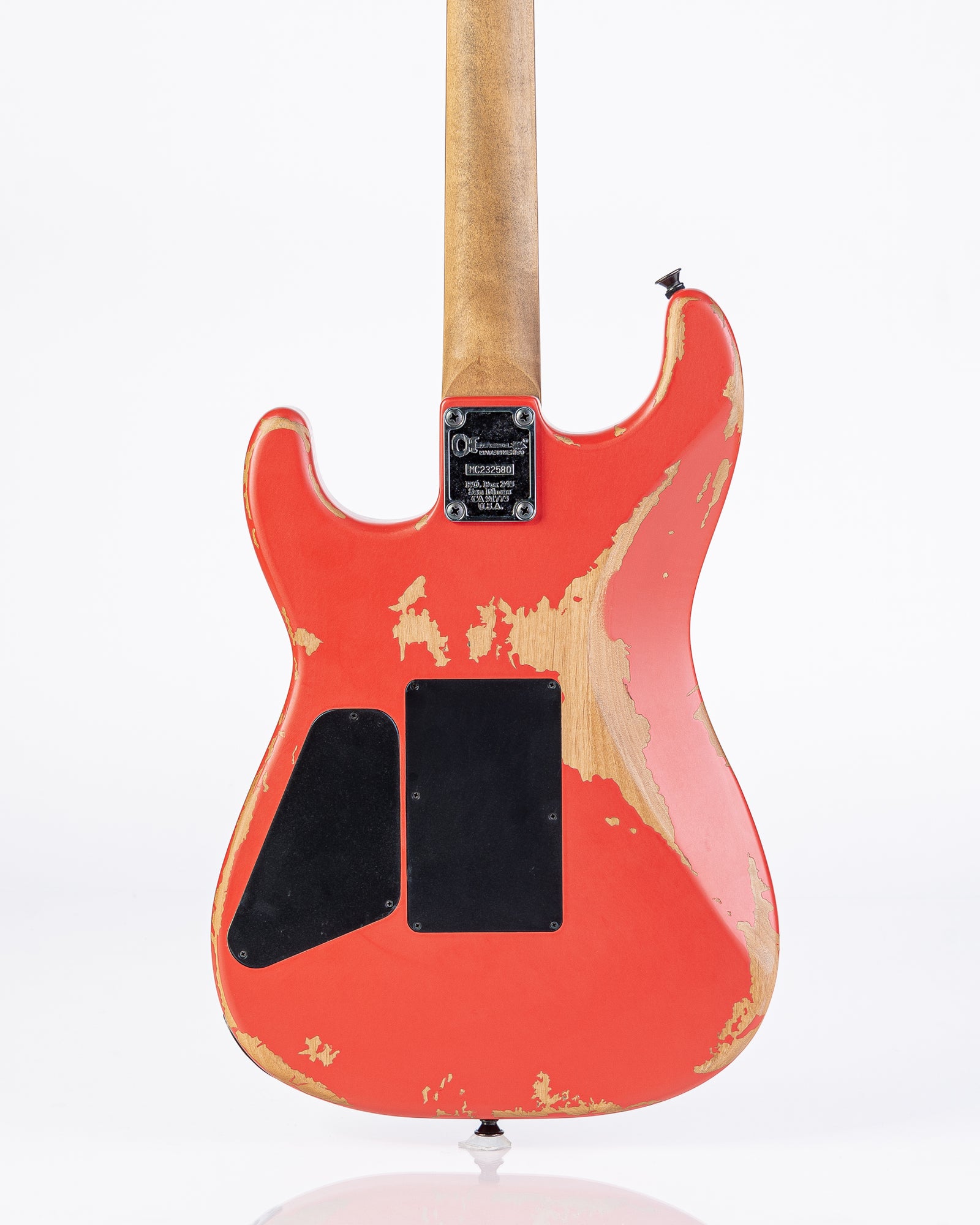

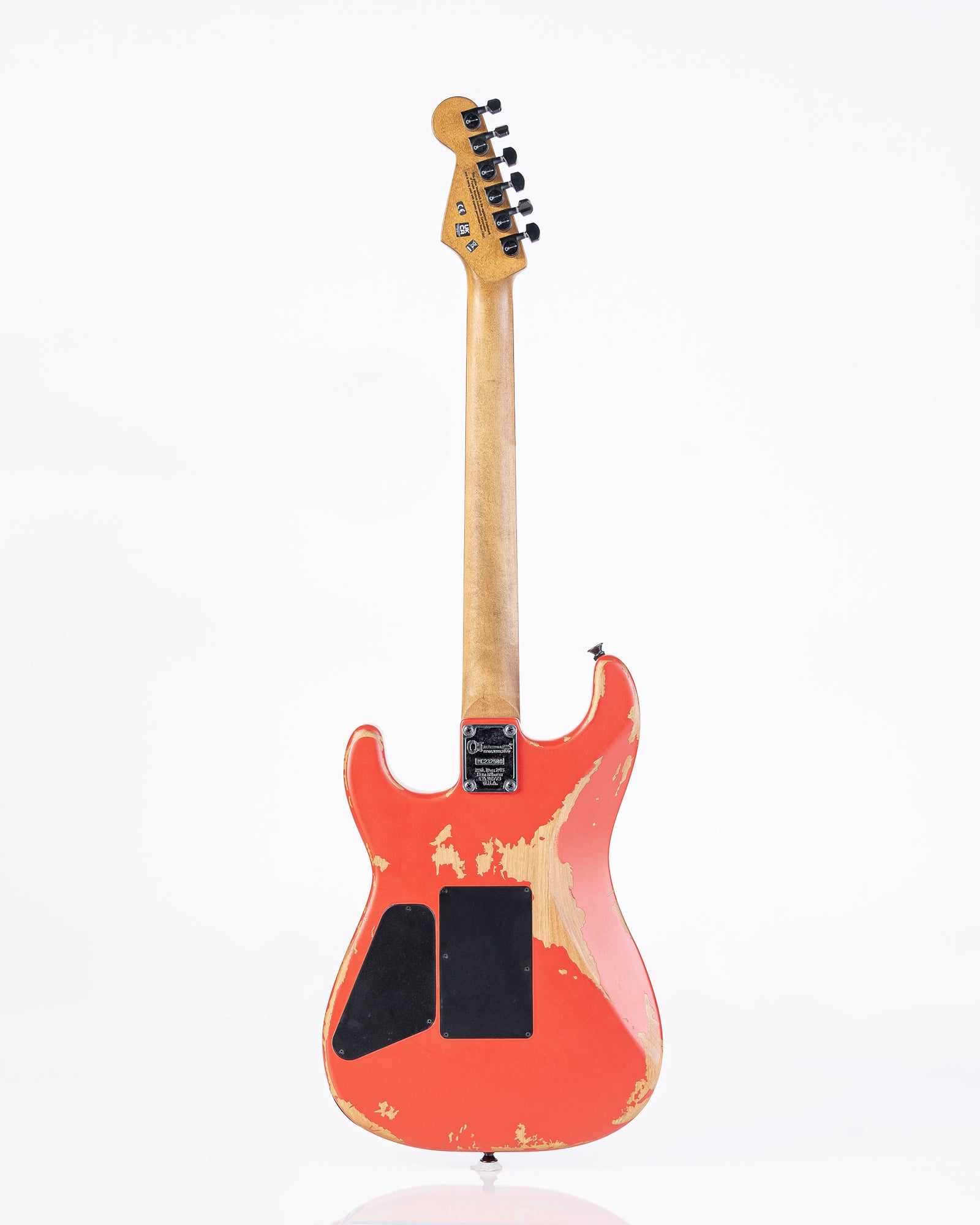

Charvel Pro-Mod Relic San Dimas Style 1 HH FR PF Weathered Orange

The Pro Mod Relic Series San Dimas continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering modern players the latest technology and top-notch features but with sought after “relic’d” finishes.

Weight: 7 lbs 15.5oz
Serial Number: MC232580


  • Relic'd alder San Dimas® body
  • Bolt-on maple neck with graphite reinforcement
  • 12"-16" compound radius Pau Ferro fingerboard
  • Direct mount Seymour Duncan® JB TB-4 and Seymour Duncan® '59™ SH-1N pickups
  • Heel-mount truss rod adjustment wheel
  • Floyd Rose® 1000 series double-locking tremolo bridge system


Series: Pro Mod
Orientation: Right-Hand
Color: Weathered Orange
Country Of Origin: Mexico

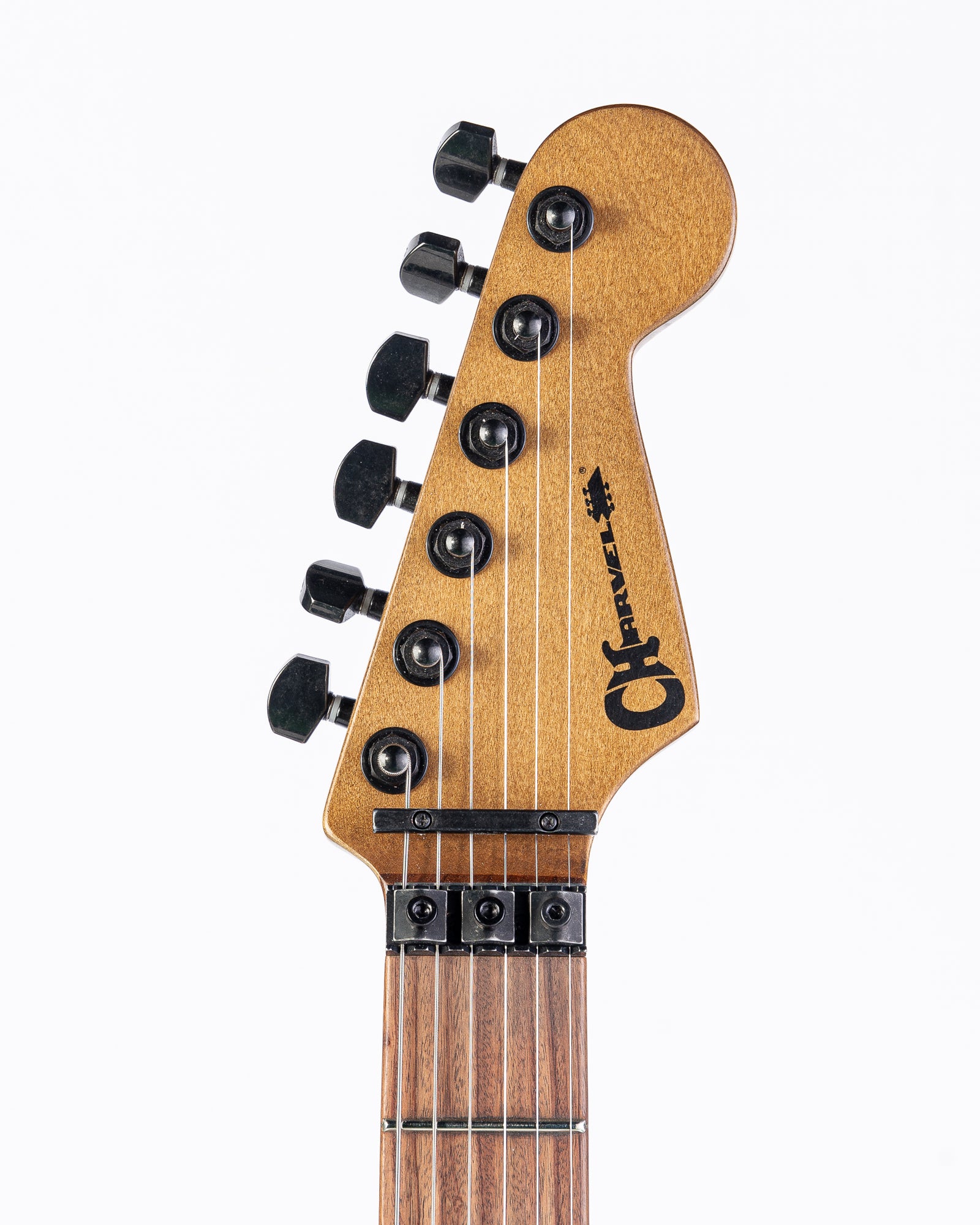

Headstock: Stratocaster

Neck Material: Maple

Neck Finish: Hand-Rubbed Urethane Gel

Neck Construction: Bolt-On with Graphite Reinforcement

Fingerboard Radius: 12”-16” Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material: Pau Ferro

Position Inlays: Cream

Side Dots: White

Number of Frets: 22
Truss Rod: Dual-Action With Wheel

String Nut: Floyd Rose 1000 Series Locking

Nut Width: 1,6875” (42,86 mm)

Nut Material: Floyd Rose 1000 Series Locking


Body: Alder

Body Finish: Distressed Nitrocellulose Lacquer

Body Shape: San Dimas

Body Material: Alder


Bridge: Floyd Rose 1000 Series Double-Locking Tremolo (Recessed)

Control Knobs: Dome-Style

Hardware: Black

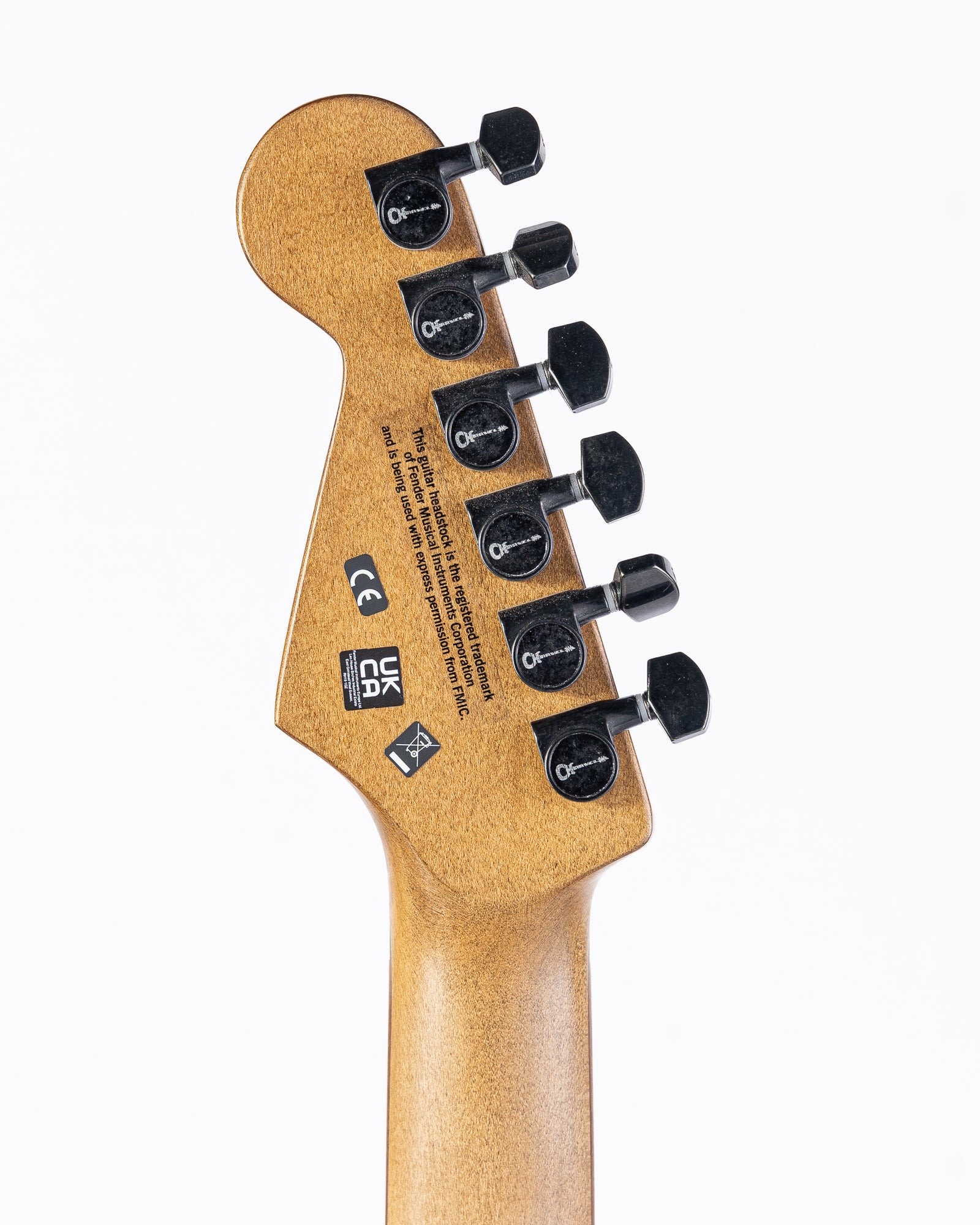

Tuning Machines: Charvel Branded Die-Cast

Strings: Nickel Plated Steel (9-42)

Neck Plate: Charvel


Bridge Pickup: Seymour Duncan JB TB-4

Neck Pickup: Seymour Duncan 59 SH-1N

Pickup Configuration: HH
Controls: Volume

Switching: 3-Position Toggle: Position

  • 1. Bridge Pickup, Position
  • 2. Bridge And Neck Pickups, Position
  • 3. Neck Pickup
